Positioning Drawbar

1. Put drawbar (A) in fixed centered position, as close as possible to 406-508 mm (16-20 in.) from ground to drawbar top.

2. Be sure clevis assembly (if equipped) is installed on drawbar top.

3. Tighten clevis assembly nuts to specification.

Specification

Nuts -Torque 407 N·m (300 lb-ft)

4. For Trac and four-wheel drive tractors, allow one hole clearance on each drawbar side.

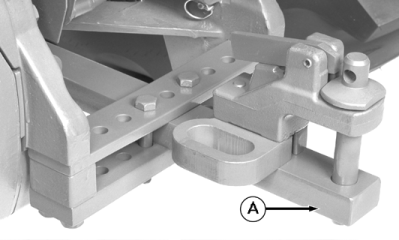

A-Drawbar

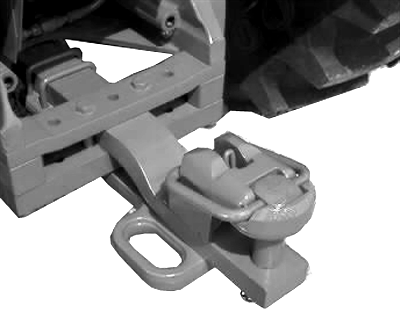

RW55308
