Using Lever Lock Clips and Rubber Stop-John Deere 7000 Series Tractors

NOTE: Lock clip or rubber stop keeps lever from returning to NEUTRAL, maintaining pressure setting.

Lock clip (A) or rubber stop (B) is used to hold SCV III lever in pressurized position. (See INSTALLING LEVER LOCK CLIP-JOHN DEERE 7000 SERIES TRACTORS or INSTALLING RUBBER STOP-JOHN DEERE 7000 SERIES TRACTORS for installation instructions.)

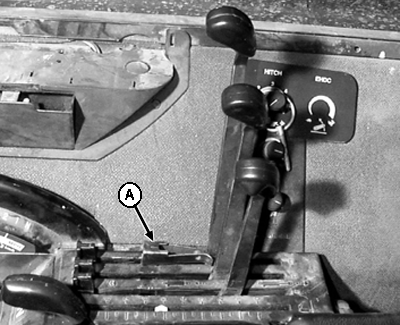

A-Lock Clip

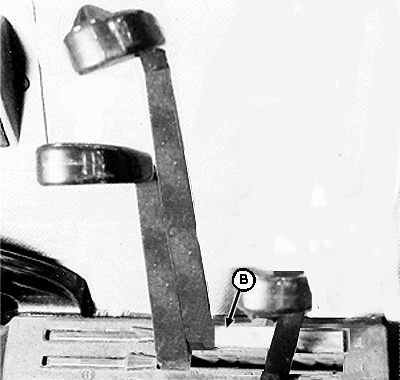

B-Rubber Stop

NX,980HO98,A6A -19-13APR98-1/1
