Installing Lever Lock Clip-John Deere 7000 Series Tractors

NOTE: Following steps attach lock clip to SCV III to control hydraulic front-end frame hold-down attachment.

1. Lift float lock-out stop (A).

2. Squeeze lock clip (B) sides and insert in groove.

3. Push handle forward to retain clip in position.

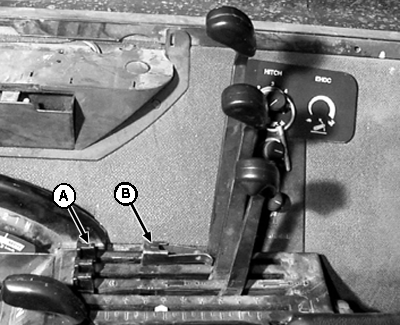

A-Lock-out Stop
B-Lock Clip

NX,980HOMV,A7A -19-09APR98-1/1
