Adjusting Single Point Depth Control and Indicator

IMPORTANT: Loosen indicator strap bracket hardware before making adjustment to avoid damage to pointer strap or slotted bracket.

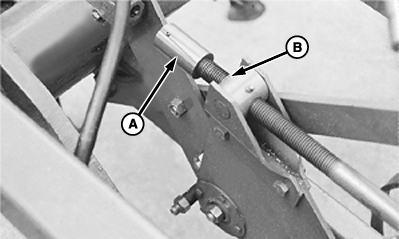

1. Turn crank rod until spacer (A) contacts threaded block (B) (full-forward).

2. Retract depth control cylinder(s) completely.

A-Spacer
B-Threaded Block

NX,980J98,A12B -19-09APR98-1/2

3. Position bracket (A) so pointer tip aligns with letter F. Tighten indicator bracket hardware.

A-Bracket

NX,980J98,A12B -19-09APR98-2/2
