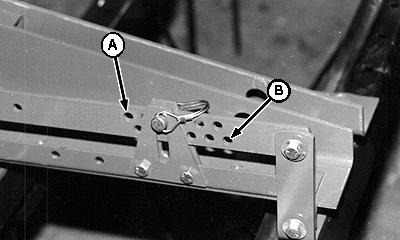

Adjusting Coil-Tine Harrow AngleHarrow angle determines how aggressively harrow will operate in field. MOST AGGRESSIVE POSITION (A) When quick-lock pin is installed in front hole, harrow is in most aggressive position. LEAST AGGRESSIVE POSITION (B) When quick-lock pin is installed in rear hole, harrow is in least aggressive position. |
|
NX,980J98,A26A -19-09APR98-1/1 |
