Reducing Castering Wheel Vibration (If Equipped)

IMPORTANT: Spring washer (A) must be properly compressed to reduce stabilizer wheel vibration.

1. Loosen jam nuts (B) and hex nuts (C).

2. Hand tighten hex nuts until all parts are just contacting.

3. Tighten hex nuts an additional half turn to compress spring washers.

4. Tighten jam nuts.

NOTE: Lubricate yoke spindle until grease flows from under washer. Complete lubrication is necessary to prevent binding and freeze-up, while ensuring smooth wheel rotation.

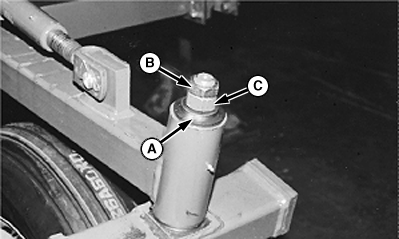

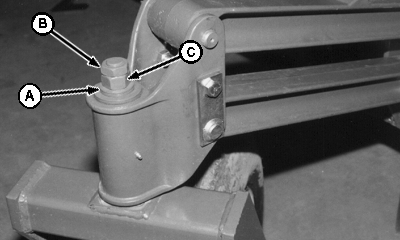

A-Spring Washer
B-Jam Nut
C-Hex Nut
