Determining Tractor Requirements

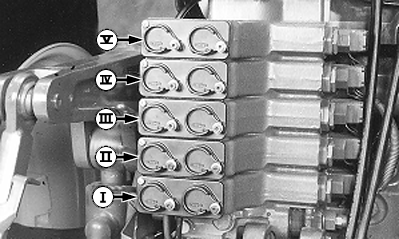

NOTE: Roman numerals (I, II, III, IV, V) designate SCV couplers as they correspond to SCV buttons located in tractor cab.

1. (See RECOMMENDED TRACTORS in Specifications section.)

2. Install adapters, if tractor does not have ISO hydraulic couplers. See your John Deere dealer.

N48100

John Deere 8000/9000 Series Tractors

NX,980V,A7 -19-17SEP96-1/2

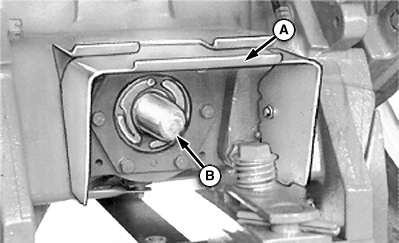

causym CAUTION: Keep tractor shield (A) and PTO shaft guard (B) in place at all times, to prevent entanglement with rotating PTO shaft. Rotating PTO shaft contact can cause serious injury or death.

3. Consult tractor Operator's Manual for specific adjustment procedures, tire inflation, wheel spacing, and ballast requirements.


A-Shield
B-PTO Shaft Guard

RW5854

NX,980V,A7 -19-17SEP96-2/2
