Attaching Machine-John Deere 8000/9000/8020/9020 Series Tractors

1. Attach machine hitch to tractor drawbar. Retain hitch pin with locking lever.

2. Engage tractor parking brake and/or place transmission in PARK, shut off engine, and remove key.

3. Plug wing-fold hoses (if equipped) in SCV II couplers (B).

IMPORTANT: When attaching TOUCHSET machine, correctly connect depth control hoses to couplers. If connections are reversed, machine will not respond to TOUCHSET controls.

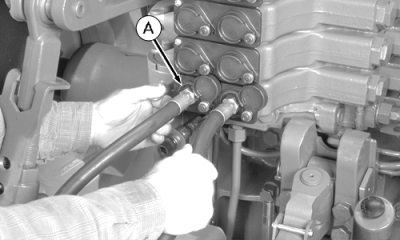

4. With or Without Touchset -Push depth control hoses in SCV I couplers (A). On TOUCHSET machine, be sure oil flow agrees with symbols on hose identification tag. EXTEND hose always goes in left-hand coupler.

IMPORTANT: If using open SCV for by-pass, place SCV lever in FLOAT position when operating. FLOAT function must be reset each time tractor engine is shut off and re-started.

5. Install pressure by-pass line in open SCV coupler (C) or low pressure return port.

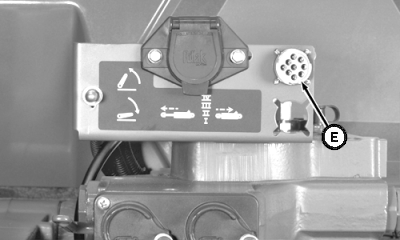

6. With Touchset Depth Control -Attach TOUCHSET wiring harness to 9-pin connector (E).


A-SCV I Couplers
B-SCV II Couplers
C-Open SCV Coupler
D-Open SCV Lever
E-9-Pin Connector

N47785
N47786
N47729B
N47727B

NX,980W97,A20B -19-02APR97-1/2

IMPORTANT: When transporting machine, position jack handle on top to prevent jack damage.

7. Raise jack (A) and pin in transport position.

8. With Rolling Baskets (Not Shown) -Raise rear parking stand to transport/field position. Retain with storage pin and spring lock pin. (See RAISING AND LOWERING REAR PARKING STAND-MACHINES EQUIPPED WITH SPIKE-TOOTH HARROW WITH ROLLING BASKET ATTACHMENT.)


A-Jack

N85345AA1

NX,980W97,A20B -19-02APR97-2/2
