Attaching Machine-John Deere 7000 Series Tractors

1. Attach machine hitch link to tractor drawbar. Retain hitch pin with spring strap or hex nut.

2. Engage tractor parking brake and/or place transmission in PARK, shut off engine, and remove key.

3. Plug wing-fold hoses (if equipped) in SCV II coupler (A).

4. Plug depth control hoses in SCV I coupler (B).

IMPORTANT: If using open SCV for by-pass, place SCV lever in FLOAT position when operating. FLOAT function must be reset every time tractor engine is shut off and re-started.

5. Install pressure by-pass line in open SCV (C) or low pressure return port (D) (if equipped).

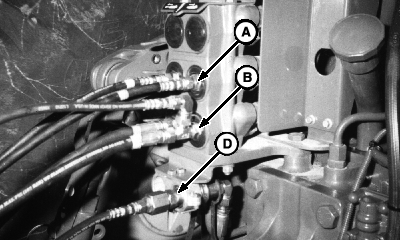

A-SCV II Coupler
B-SCV I Coupler

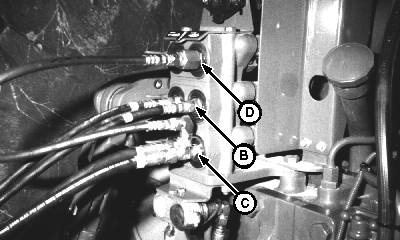

C-Open SCV
D-Return Port

N59064
N59065

NX,980W97,A4A -19-02APR97-1/2

IMPORTANT: When transporting machine, position jack handle on top to prevent jack damage.

6. Raise jack (A) and pin in transport position.

7. With Rolling Baskets (Not Shown) -Raise rear parking stand to transport/field position. Retain with storage pin and spring lock pin. (See RAISING AND LOWERING REAR PARKING STAND-MACHINES EQUIPPED WITH SPIKE-TOOTH HARROW WITH ROLLING BASKET ATTACHMENT.)

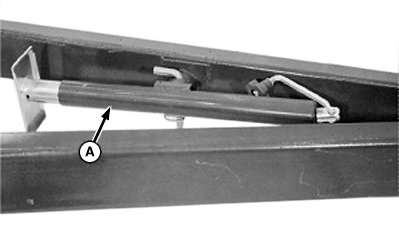

A-Jack

N85345AA1

NX,980W97,A4A -19-02APR97-2/2
