Using Warning Lights and SMV Emblem
Amber warning lights should be installed at widest machine points. Red warning lights should be located at rear of combined machines. For maximum machine visibility, keep amber and red warning lights, reflectors, and SMV emblem clean. |
CAUTION:
When transporting machine on a road or highway at night or during day, use accessory lights and devices for adequate warning to other vehicle operators. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.
NX,WARNL,1A1 -19-16MAR99-1/2 |
|

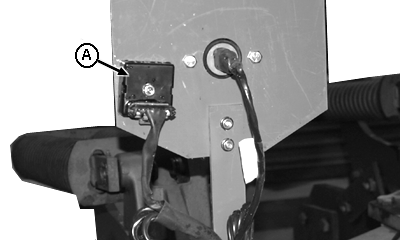

NOTE: Lighting enhancement module is attached to left-hand red light bracket rear. Lighting enhancement module (A) is in machine lighting circuit. Module causes red lights to function as turn signals. During normal operation, both amber lights will flash in unison at high intensity, and both red lights will illuminate steady at low intensity. When a turn is signaled, red light for turn direction will flash at high intensity and in unison with amber light. Opposite side amber and red lights will illuminate steady at high intensity.
|
|
NX,WARNL,1A1 -19-16MAR99-2/2 |
