Replacing Front and Rear Warning Light Bulbs

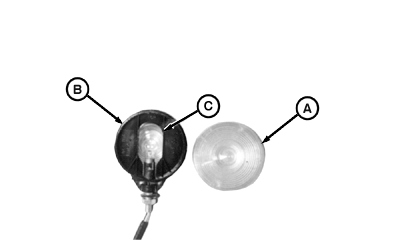

1. Using flat blade screwdriver carefully pry amber lens (A) from light assembly (B).

2. Replace bulb (C) and reinstall lens. See BULB PART NUMBERS in this section for proper replacement.


A-Amber Warning Light Lens
B-Warning Light Assembly
C-Bulb

N42194JL
N42194JO

AG,OUO1011,1184 -19-08SEP99-1/1
