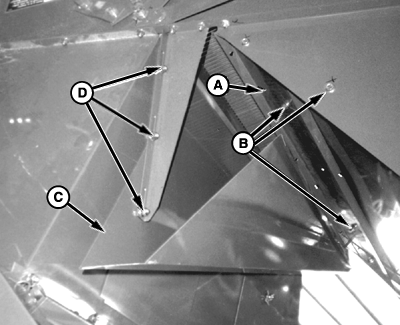

Separation Duct Setting-UpperRecommended starting position of air duct panel (A) is fully up. For additional boll separation, lower air duct panel by loosening hardware (B). 7460 has an adjustable green boll chute (C). Recommended starting position is fully down. To increase separation, raise green boll chute by loosening three cap screws (D) on right-hand side and two cap screws (not shown) on left-hand side.
|
|
