Operate Basket Cylinder Lock Valve

CAUTION: Serious injury or death to you or others can occur from being crushed by basket. Always engage basket cylinder lock valve when cleaning or performing maintenance with basket raised.

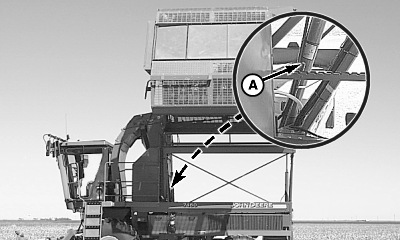

When basket is raised, turn handle (A) to lock position BEFORE working under basket. When lowering basket, stand clear; then turn handle to unlock position. Basket will not lower unless valve is unlocked.

A-Basket Cylinder Lock Handle

AG,OUO1011,1817 -19-30NOV99-1/1
