Adjust Row Unit Cross Auger Sensor

NOTE: Auger drive sheave removed for photographic purposes.

Adjust sensor bracket, as necessary, so that sensor is centered over tone wheel.

1. Loosen jam nuts (B).

2. Turn sensor (A) until it contacts the tone wheel (C).

3. Back sensor off 1-1/2 turns or 2.5 mm (0.1 in.). Align sensor with tone wheel and tighten jam nuts.

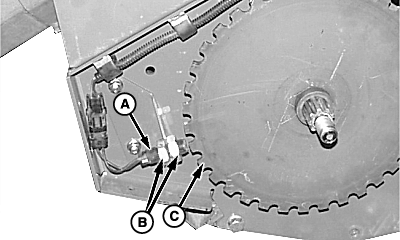

A-Cross Auger Sensor
B-Jam Nuts
C-Tone Wheel
