Filling Fuel Tank

CAUTION: Fuel is highly flammable and can cause serious injury or death to you or others if it spills from fuel tank and is ignited. Do not refuel machine while smoking or when near an open flame or spark. Always stop engine before refueling. Fill fuel tank outdoors. Be sure to replace fuel fill cap and rear screen after filling. Always clean up spilled fuel.

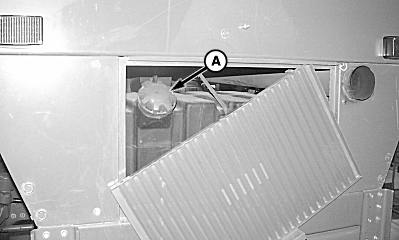

1. Pull spring loaded rear screen out and position it to the side for access to fuel fill cap (A).

2. Remove fuel fill cap and fill tank with proper grade of diesel fuel. (See Diesel Fuel in Lubrication and Maintenance section.)

3. Replace fuel fill cap and rear screen.

A-Fuel Fill Cap

NXA8,M745525,2 -19-17NOV99-1/1
