After 100 Hours

Drain oil from crankcase, change filter (A), remove oil filler cap (B), and fill with John Deere PLUS-50 ® oil. John Deere TORQ-GARD SUPREME ® oil is also recommended or equivalent. Thereafter, perform this task every 200 hours or once each season. (See ENGINE BREAK-IN OIL AND DIESEL ENGINE OIL in Lubrication and Maintenance section for proper oil specifications).

Replace oil filler cap.

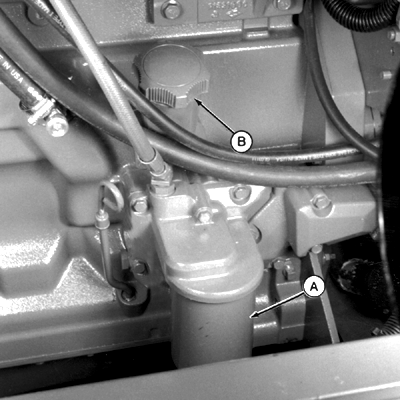

A-Oil Filter
B-Oil Filler Cap

PLUS-50 is a trademark of Deere & Company.
TORQ-GARD SUPREME is a trademark of Deere & Company.

NXA8,M745530,1 -19-17NOV99-1/1
