Adjusting Cut-Off Angles

Move cut-off angles closer to strip roll to compensate for wear as follows:

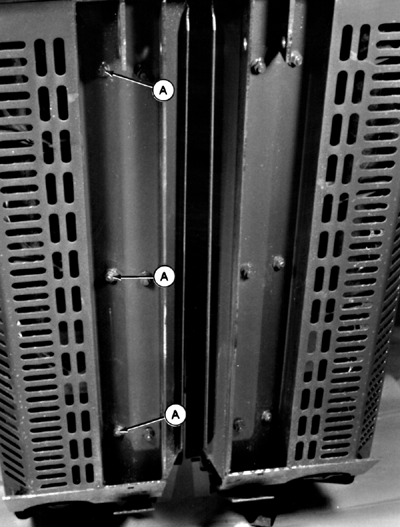

1. Loosen cap screws (A) and adjust cut-off angles parallel to bat. Distance between cut-off angle (B) and bat and brush ends (C) should be 1.6-6.4 mm (1/16-1/4 in.).

2. Tighten cap screws.


A-Cap Screws
B-Cut-Off Angle
C-Bat And Brush Ends

N42159QA
N42179R

NXA8,M745545,3 -19-04DEC97-1/1
