Adjusting Strip Roll Comb Guides

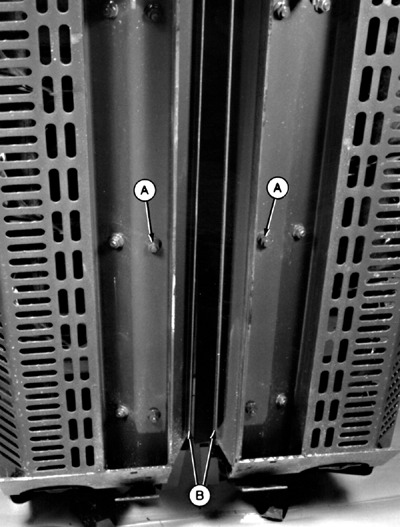

Combs (B) should be set parallel with brushes or CENTERED on space between rolls.

2. Position combs at FRONT of unit, just wide enough so plants flow through freely. Recommended distance between combs at rear of guides is 32 mm (1-1/4 in.) and 38 mm (1-1/2 in.) at front of guides.

A-Cap Screws
B-Combs

NXA8,M745545,4 -19-04DEC97-1/1
