Adjusting Basket Stabilizer Cylinder

IMPORTANT: There MUST be 3 mm (1/8 in.) clearance between valve arm and pin when basket is lowered.

NOTE: When basket is raised, arm (A) must fully compress pin (C).

2. Adjust so clearance between valve arm and pin (C) is 3 mm (1/8 in.).

3. Without altering required clearance between valve arm and pin, adjust bracket (D) so it is flat against bracket.

4. Tighten two adjusting cap screws.

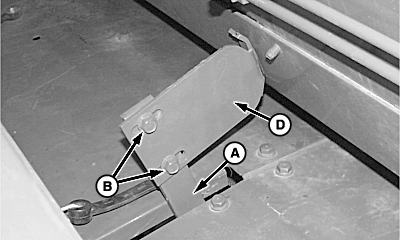

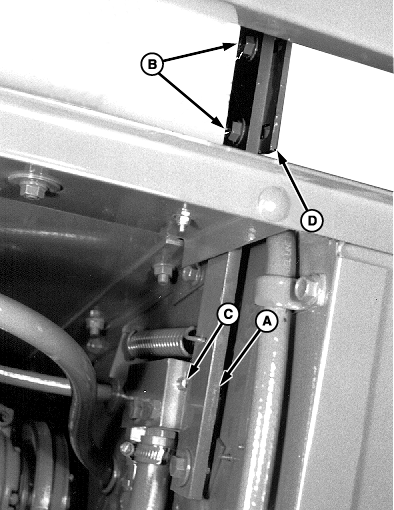

A-Valve Arm
B-Adjusting Cap Screws
C-Valve Pin
D-Valve Bracket

NXC8M745575,Q10 -19-13FEB98-1/1
