Checking Engine Oil Level

Do not operate engine when oil level is below add mark on dipstick (A). Remove oil filler cap (B) and add oil if necessary. (See Lubrication and Maintenance section for engine oil specifications.)

Replace oil filler cap.

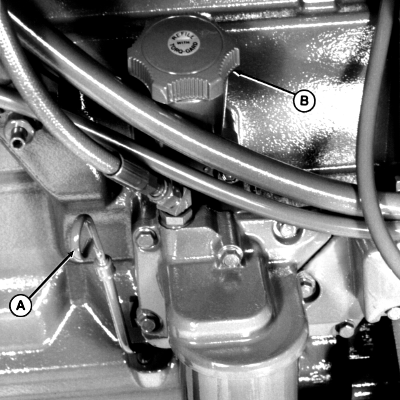

A-Dipstick
B-Oil Filler Cap

N42182WD

NXC8,M64625,E1 -19-17NOV99-1/1
