Using Brake Latch

To use service brakes individually to assist in low-speed turning, flip the brake latch to right-hand (unlatch) position (A). Depress brake pedal which corresponds with direction of turn.

When stripper is to be driven at high speed or when brakes are not needed to assist in low speed turning, latch brake pedals together by flipping brake latch to left-hand position (B) (into groove in left-hand brake pedal).

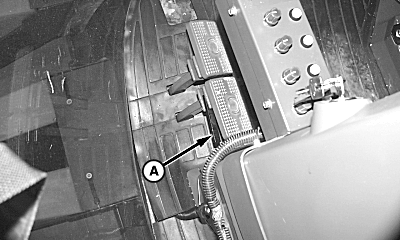

A-Unlatch Position

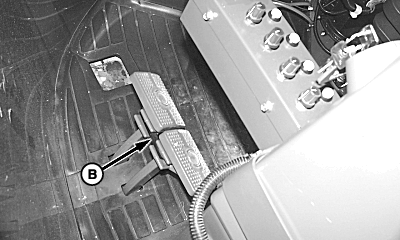

B-Left-Hand Position
