Setting Strip Roll Timing
1.
Remove shield. (See REMOVING UNIT SHIELDS-FRONT and REMOVING UNIT SHIELDS-REAR in this section.)
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-1/8
|
|
2.

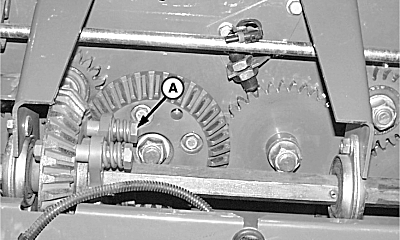

Remove four shoulder bolts (A), springs and nuts.
A-Shoulder Bolt (4 used)
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-2/8
|
|
3.

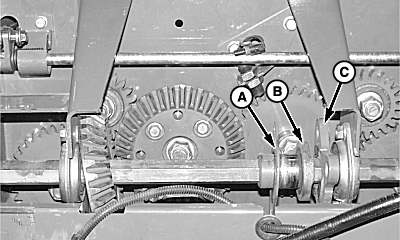

Slide plate (A), hub (B) and flange (C) to the other side of shaft.
A-Plate
B-Hub
C-Flange
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-3/8
|
|
4.

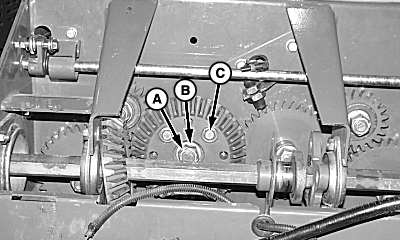

Remove lock nut (A), washer (B), four flange head cap screws (C) and bevel gear.
A-Lock Nut
B-Washer
C-Flange Head Cap Screw (4 used)
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-4/8
|
|
5.
Remove strip roll gear (A).
A-Strip Roll Gear
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-5/8
|
|
6.

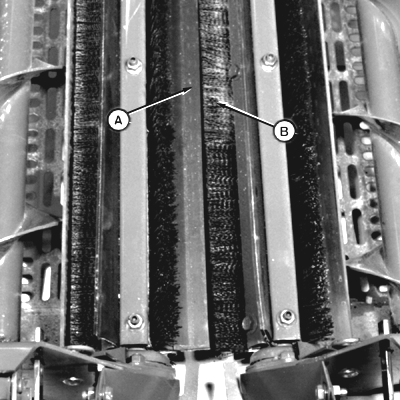

Turn strip rolls to desired setting. Recommended setting is bat (A) to brush (B). Bat to bat will provide more aggressive harvesting.
A-Bat
B-Brush
|

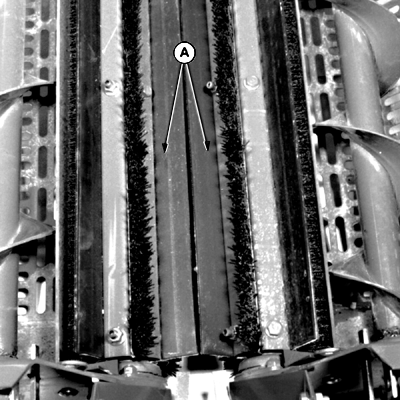

Bat to Brush
Bat to Bat
|
|
|
NXC8,M64645,T1 -19-13FEB98-6/8
|
|
7.

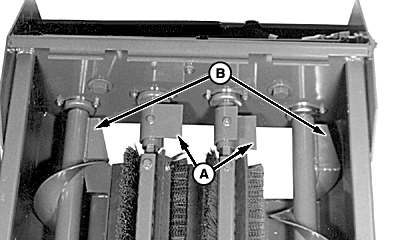

As roll is being turned over, paddles (A) and auger paddles (B) must be facing in same direction. Remove brush or auger gear and set timing again, if necessary.
A-Paddles
B-Auger Paddles
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-7/8
|
8.
Install in reverse order as removed using the following special instructions.
-

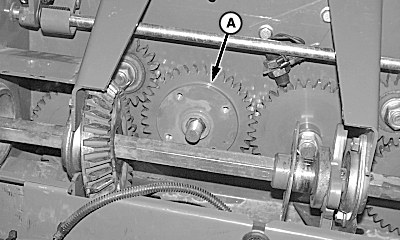

Tighten strip roll gear lock nut (A) to specification.
Specification
|
Lock Nut
-Torque
|
108 N·m
|
(80 lb-ft)
|
-
Tighten slip clutch bolts (B) to specification.
Specification
|
Slip Clutch Bolts
-Torque
|
54 N·m
|
(40 lb-ft)
|
9.
Repeat procedure for all units and set each unit same.
A-Lock Nut
B-Slip Clutch Bolts (4 used)
|
|
|
|
NXC8,M64645,T1 -19-13FEB98-8/8
|
|
