Nozzle Tab Setting

Optimum distribution of air across duct is achieved by settings described below. Position of front nozzle tab (A) is critical to achieve uniform distribution. Adjust nozzle tab to specification.

Specification

Nozzle Tab -Dimension 70 mm (2.75 in.)

IMPORTANT: Dimension must be uniform across nozzle tab.

If nozzle tabs (C) are damaged or inadvertently adjusted, reset to specification as shown.

Specification

Nozzle Tab -Distance 6 mm (0.25 in.)

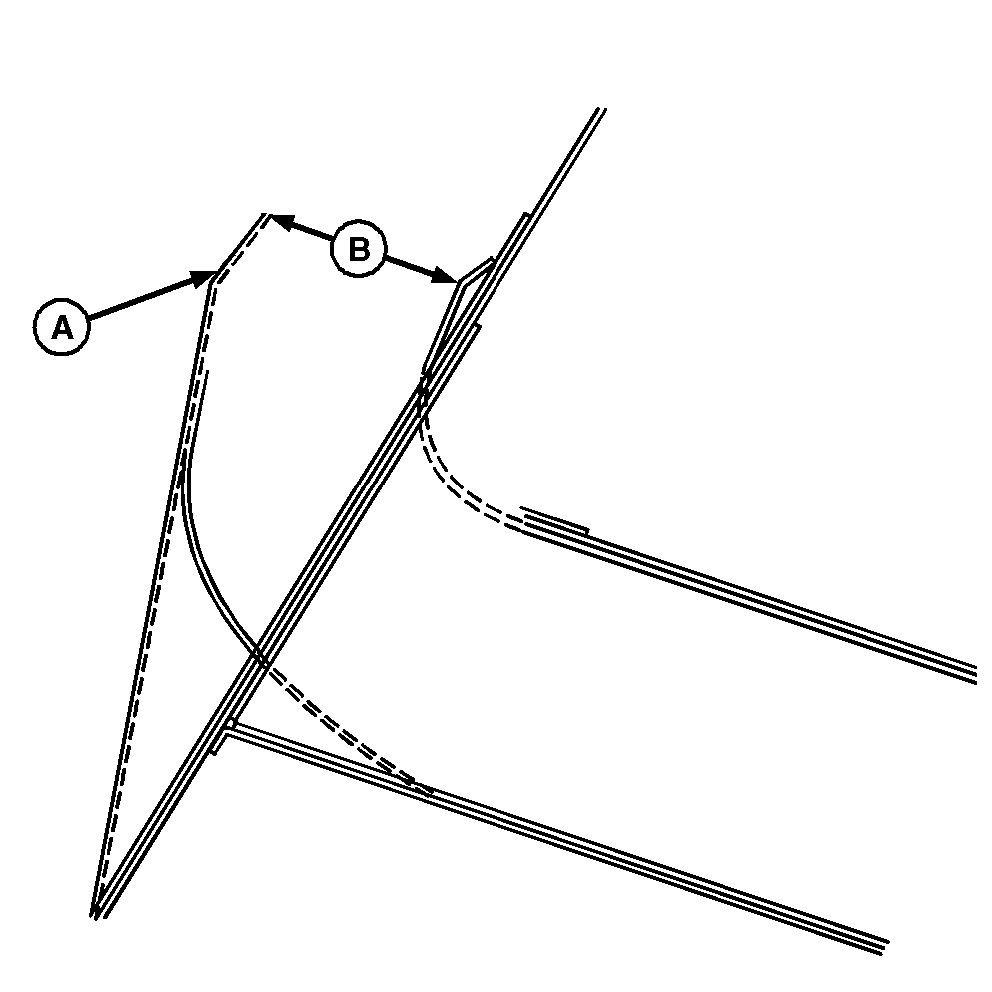

N62353

Side View

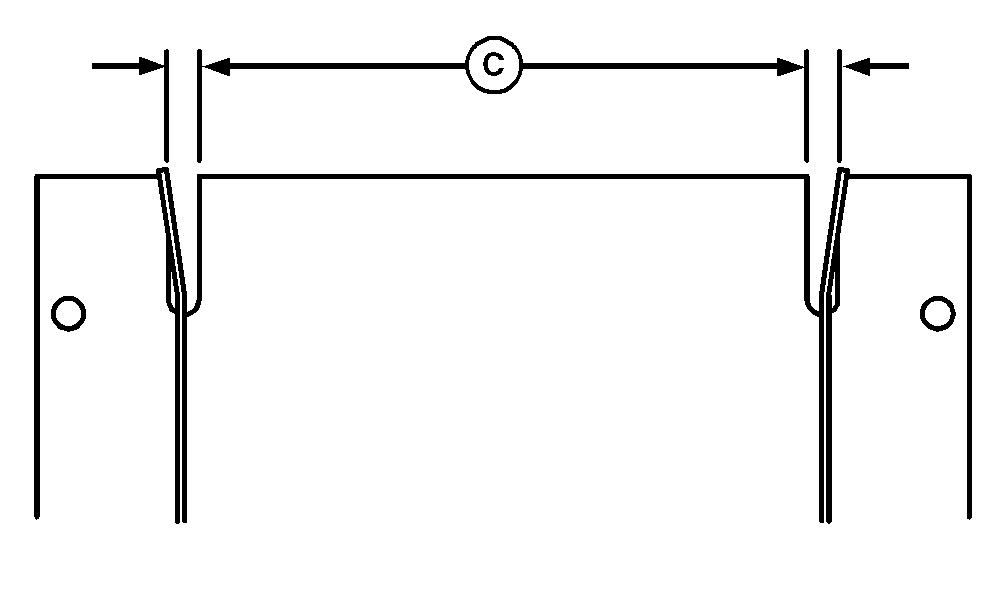

N62709

Front View

NXC8,M64650,J14 -19-16FEB98-1/1
