Operating Cleaner Bypass Lever

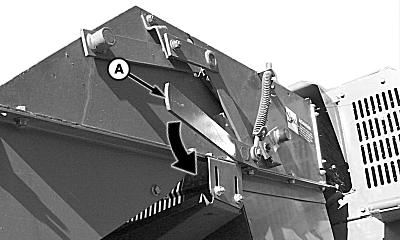

To send cotton to cleaner, position bypass lever in UP position (A) as shown.

To bypass cleaner and send cotton directly to basket, pull cleaner bypass lever down.

NOTE: To turn cleaner saw indicator light off when running in cleaner bypass mode with cleaner disengaged refer to HARVEST READY MONITOR (CLEANER BYPASS MODE) In Harvest Monitor section.

A-UP Position

NXC8,M64650,J18 -19-13FEB98-1/1
