Cleaning Radiator Compartment

1. Remove radiator side screens.

2. Loosen wing nut (A) and remove panel (B).

IMPORTANT: Spray from high pressure washer can damage fins and condenser core. DO NOT allow water from high pressure washer to bend fins on condenser core.

3. Clean lint and dirt from cooling cores.

4. Remove bottom plate to clean between cooling cores. Install plate when finished.

5. Install panel and wing nut.

6. Install side screens.

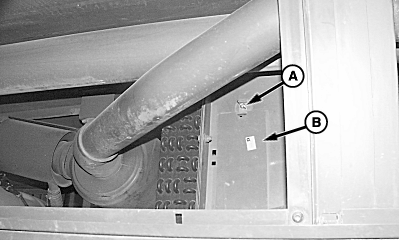

N62722


A-Wing Nut
B-Panel
