Field ROW-TRAK™ Learn

Field ROW-TRAK ™ Learn is to be performed on straight rows. This teaches machine where center of row is and "straight ahead" position of guide wheels, based on operator's steering of machine. Field Learn is preferred over Static Learn method.

NOTE: Factory or dealer installation includes a Static Learn for initial set-up. Performing a Field Learn at start of season is recommended. This is not a daily operation. "Operating ROW-TRAK ™ " in this section provides more details on when to perform a Learn.

1. With fan/unit (E) and ROW-TRAK ™ switch (B) turned "On", go to beginning of row to be harvested.

2. Center the "Offset" knob (D).

3. Sit squarely on seat.

4. Operate engine at fast idle.

5. Push and hold CAL/LEARN switch (C) in CALIBRATE position (push down on upper half of switch) until ROW-TRAK ™ starts beeping slowly (about 2 seconds) and ROW-TRAK ™ light begins to flash slowly.

6. Begin harvesting.

7. When you are in a row that will stay reasonably straight for 45 seconds, push auto engage button (A) on hydro lever. Horn will now beep faster, ROW-TRAK ™ light will flash faster, and tachometer will display values between "0" and "100".

8. Continue to steer machine, maintaining probe centered on row for 45 seconds. System is learning what probe position is required to center machine on row.

9. After 45 seconds ROW-TRAK ™ will sound two longer beeps. System is now in standby mode and ROW-TRAK ™ light starts flashing.

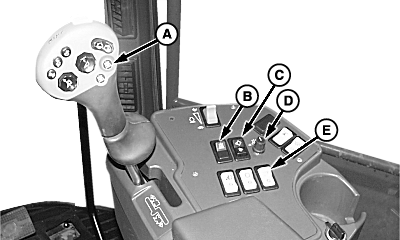

N62414


A-Auto Engage Button
B-ROW-TRAK™ Switch
C-CAL/LEARN Switch
D-Offset Knob
E-Fan/Unit Switch

ROW-TRAK is a trademark of Deere & Company.

NXC8,M745555,T5 -19-17FEB98-1/2

10. Engage system by pressing on ROW-TRAK ™ auto engage button on hydro lever. If machine is not centered on row while harvesting, adjust machine to center of row using "Offset" knob.

ROW-TRAK is a trademark of Deere & Company.

NXC8,M745555,T5 -19-17FEB98-2/2
