NOTE: (See Specifications section for refill capacities.)

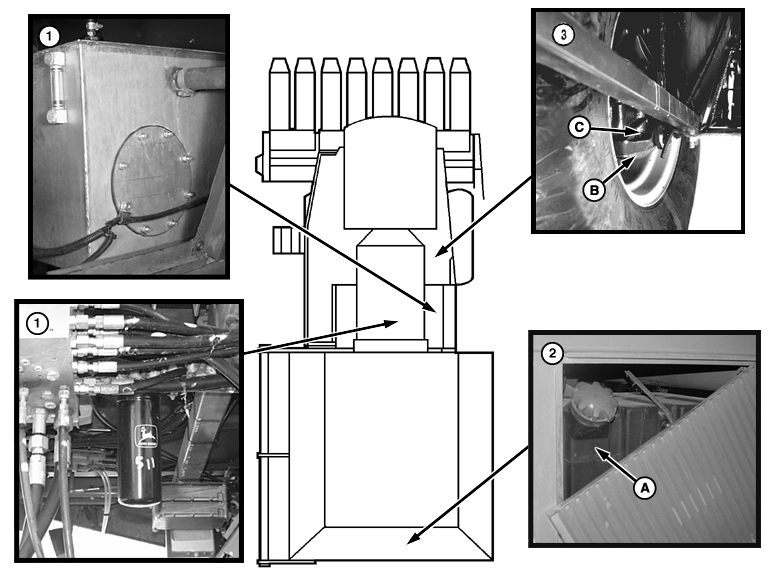

1. Drain hydraulic/hydrostatic reservoir. Replace spin-on and in-tank filters. Inspect and clean screens in reservoir. See HYDRAULIC/HYDROSTATIC OILS.

2. Drain fuel tank (A). Add fuel and drain again if excessively dirty.

3. Drain final drive oil by removing bottom plate (B). Clean mating surfaces and apply form-in-place gasket (Part No. TY15443). Replace plate. Remove plug (C) and add proper oil until level with bottom of hole. (See TRANSMISSION AND FINAL DRIVE LUBRICANT in this section.) Install plug.

NXC8,M745560,9 -19-13FEB98-1/2

NOTE: See Specifications section for refill capacity.

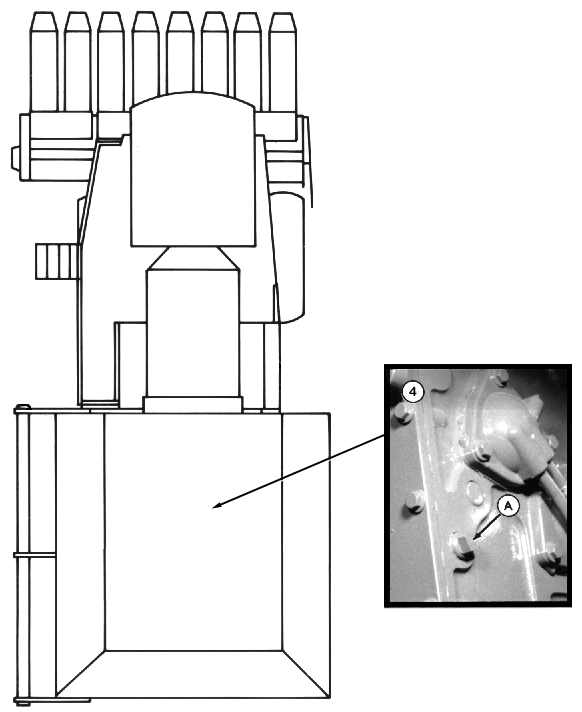

4. Remove level plug (A) and back cover to drain oil from transmission. Replace transmission cover and

NXC8,M745560,9 -19-13FEB98-2/2
