Every 50 Hours of Operation

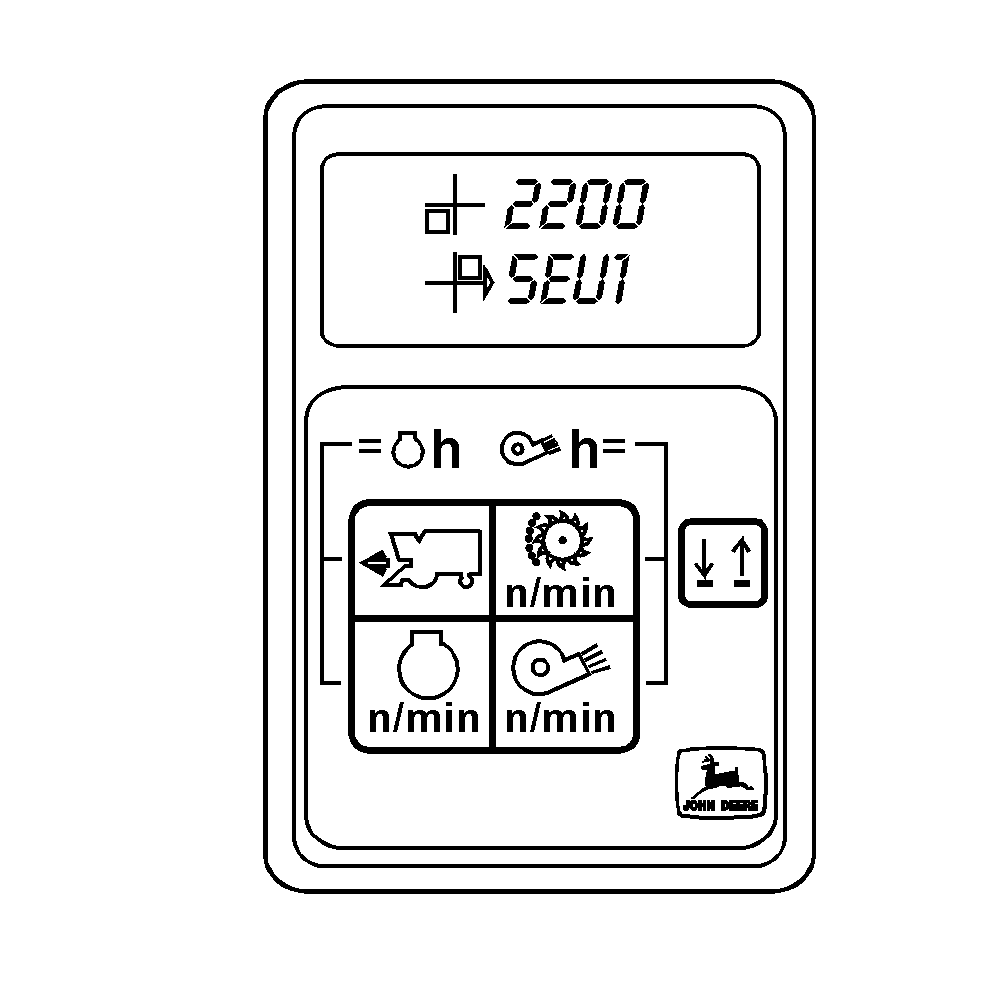

1. The digital tachometer displays the message "SEU1" after each 50 hours of engine operation to assist in proper service intervals. To reset the digital tachometer to normal operation following service, see CLEARING 50 HOUR SERVICE CODE in Operator's Station section.

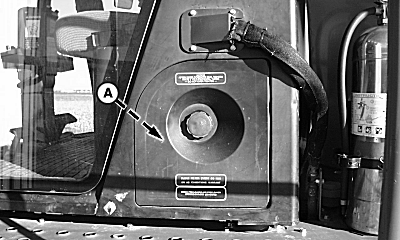

2. Clean cab fresh air filter (A) when operating in normal operating conditions.


A-Cab Fresh Air Filter

N42182TH
N62742

Left-Hand Side of Cab

NXD8,M997650,J5 -19-25FEB98-1/3

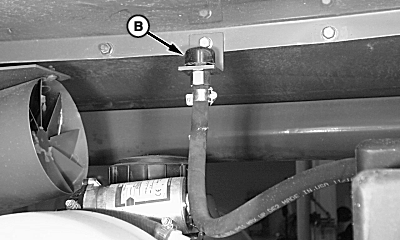

3. Clean fuel tank vent (B) when operating in normal operating conditions.


B-Fuel Tank Vent

N65420

NXD8,M997650,J5 -19-25FEB98-2/3

N65419

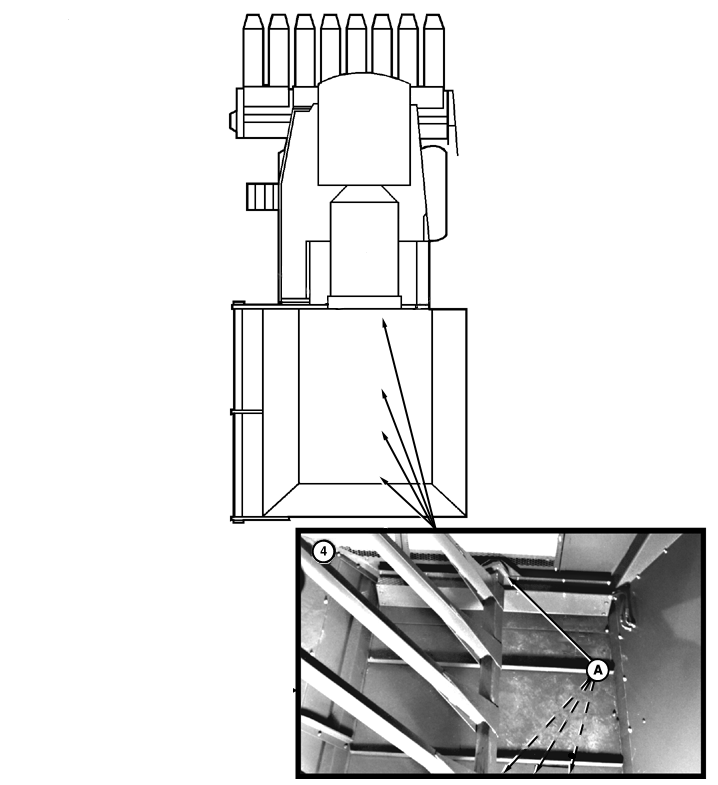

A-Basket Vanes



4. Lubricate basket vanes (A) (two grease fittings per vane).

NXD8,M997650,J5 -19-25FEB98-3/3
