Installing Filler Support and Covers

NOTE: Use 229 mm (9 in.) wide covers for wide row spacings and 102 mm (4 in.) wide covers for narrow spacings.

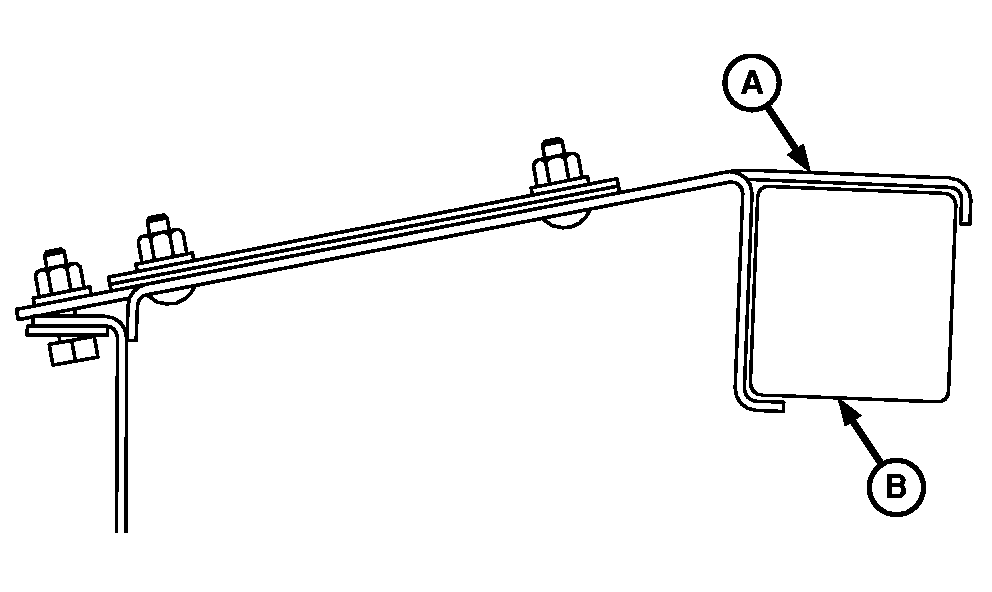

1. Snap cover plate bracket (A) over frame tube (B) as shown.

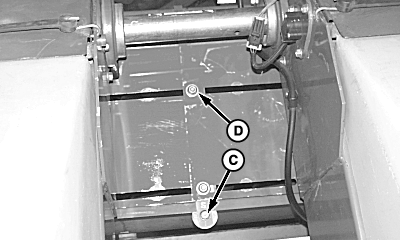

2. Install M10 x 25 flange head cap screw (C), large washer and nut. Loosen two nuts (D) and adjust plate as necessary. Repeat procedure for remaining cover plates.

A-Cover Plate Bracket
B-Tube
C-Flange Head Cap Screw, M10 x 25
D-Nuts (2 used)

NXL,7445,I23AL2 -19-16NOV99-1/1
