Replacing Secondary Reclamation Brush

causym CAUTION: Entanglement in cleaner saw can cause serious injury or death to you or others. Disengage cleaner drive and shut off engine BEFORE unclogging machine.

NOTE: Replace brush when it can no longer be adjusted to make contact with saw teeth.

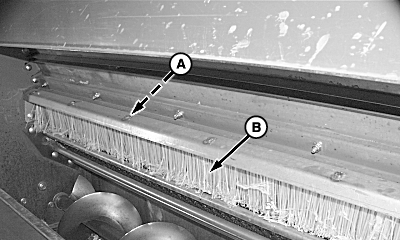

1. Remove eight nuts (A) and secondary reclamation brush (B). Replace brush and tighten hardware.

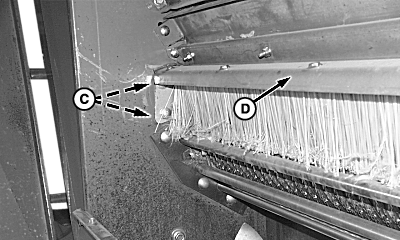

2. Loosen round head bolts (C) on both ends of brush holder panel (D).

3. Adjust holder panel so brush contacts saw, tighten round head bolts.


A-Nuts (8 used)
B-Secondary Reclamation Brush
C-Round Head Bolts
D-Brush Holder Panel

TS676
N62028

Right-Hand Side

N62035

NXL,7450,P18 -19-21FEB95-1/1
