Welding on Stripper

IMPORTANT: To avoid damage to electrical components such as tachometer and system controllers, disconnect those components from the main chassis harness. Also disconnect ground cable from battery.

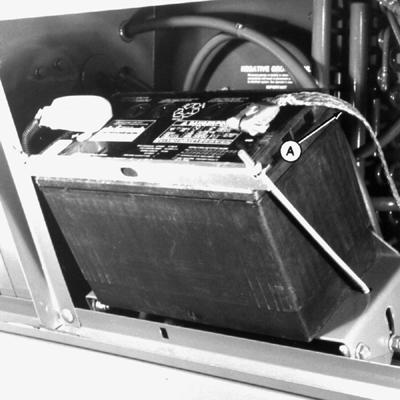

1. Disconnect battery (-) ground cable (A).

2. Disconnect header height control, chassis control and ROW-TRAK (if equipped) controllers.

A-(-) Ground Cable

NXL,7455,AA1A -19-06DEC96-1/1
