Draining Water From Fuel Filters

1. Drain water and sediment from primary filter (A) at plug (B).

2. If water and sediment was found in primary filter, drain final filter (C) at plug (D).

Replace filter elements (E) every 200 hours. (See REPLACING PRIMARY AND FINAL FUEL FILTER ELEMENTS in Engine and Drive Train section.)

NOTE: Fuel tank should be drained and refilled with fresh fuel if water and sediment are regularly found in separator bowl.

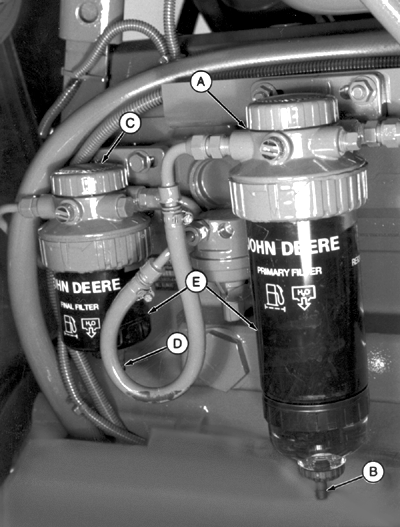

A-Primary Filter
B-Drain Plug
C-Final Filter
D-Drain Plug
E-Elements

N42179AI

NXL,7455,DW -19-17NOV99-1/1
