Checking Hydro/Hydraulic Oil Level

IMPORTANT: Avoid incorrect oil level readings. Check oil level with header and units lowered to ground. Place basket in lowered position.

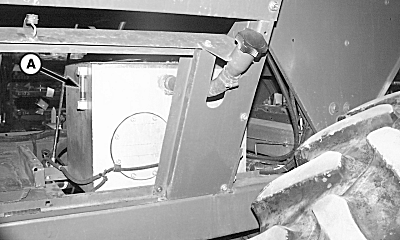

Oil level must be visible in sight glass (A). Add oil if necessary. (See Lubrication and Maintenance section.)

A-Sight Glass

NXL,7455,F3A -19-17NOV99-1/1
