Replacing Strip Roll Bats and Brushes

To replace strip roll bats or brushes:

1. Loosen keeper nuts (B).

2. Remove bat (A) (or brush).

IMPORTANT: Make sure bats and brushes do not contact gatherer grates.

3. Slide new bat (or brush) on roll. Tighten nuts.

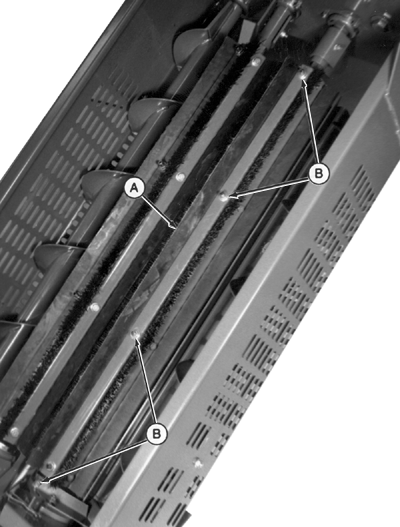

A-Keeper Nuts
B-Bat or Brush

N42179T

NXL,7455,J13A2 -19-09APR97-1/1
