Adjusting Gatherer Grates

2. Position grates (B) 19 to 38 mm (3/4 to 1-1/2 in.) (C) depending on stalk size and field conditions. Grate edges at (C) should be parallel.

3. Tighten cap screws.

NOTE: If brushes or bats contact gatherer grates, see REPLACING STRIP ROLL BATS AND BRUSHES in this section.

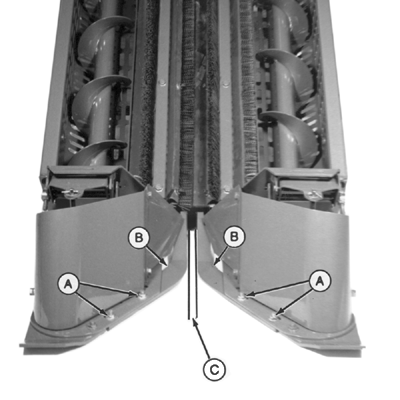

A-Cap Screws
B-Grates
C-Dimension Between Grate Edges, 19-38 mm (3/4-1-1/2 in.)

NXL,7455,J9A1 -19-09APR97-1/1
