Accessing Cleaner Gear Case

CAUTION: Entanglement in cleaner gear case pulley and belts can cause serious injury to you or others. Disengage cleaner drive and shut off engine BEFORE removing shield.

IMPORTANT: After servicing, always replace shields to protect gear case from debris.

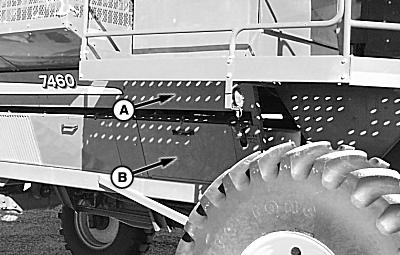

Remove panels (A and B).

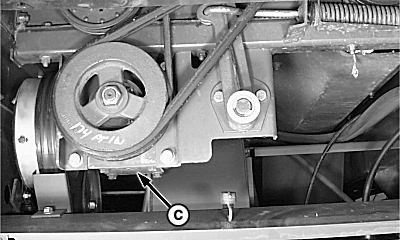

Check oil level in gear case (C). Fill gear case to level with fill plug according to hourly intervals in Lubrication and Maintenance section in this manual.

NXL,7455,P15A -19-11APR97-1/1
