Adjusting Toe-In

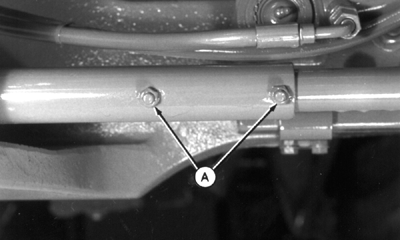

1. Remove cap screws (A) from tie rods.


A-Cap Screws

N42170JE

NXL,7455,P86L -19-28MAR97-1/2

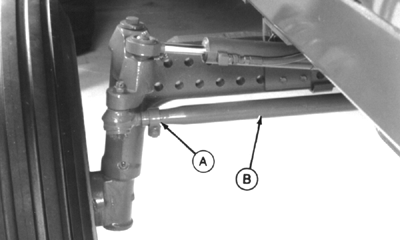

2. Loosen clamp (A) on side of axle.

3. Rotate tubes (B) to lengthen or shorten tie rods.

4. Check toe-in.

5. Tighten clamp bolts and two tie rod bolts to specification.

Specification

Clamp Bolts -Torque 47 N·m (35 lb-ft)


A-Clamp
B-Tubes
