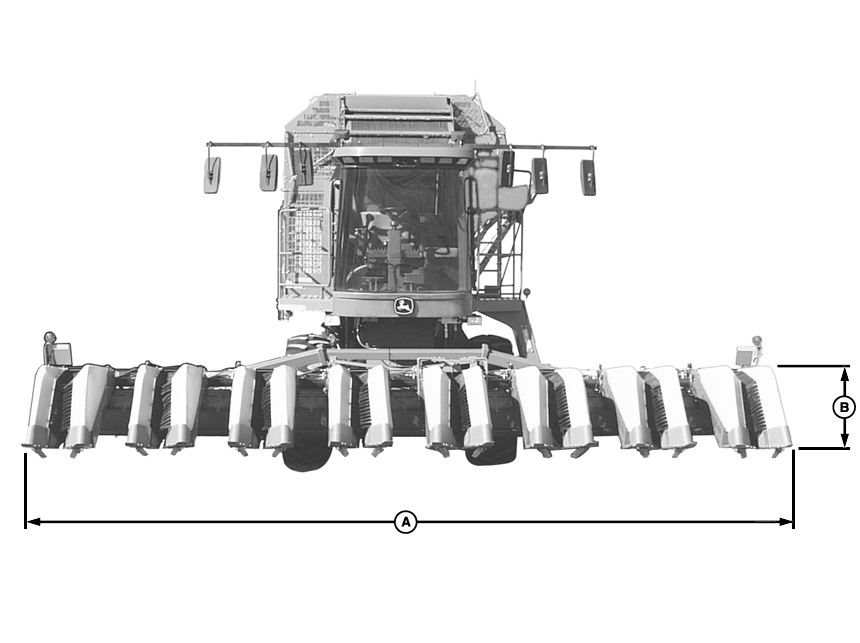

A-Header Width with 1016 mm (40 in.) Row Spacings; 8 Row 8016 mm (315.6 in.), 6 Row 5974 mm (235.2 in.), 4 Row 3932 mm (154.8 in.)
B-Unit Height, 864 mm (34 in.)
|

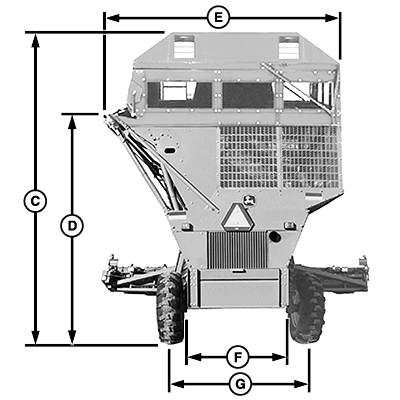

C-4775 mm (188 in.) Dump Height, 7010 mm (276 in.)
D-3480 mm (137 in.)
E-Basket-to-Rockshaft Width 3404 mm (134 in.)
F-Drive Wheel (Center-to-Center) 1702 mm (67 in.) (23.1-26 Tire)
|
G-Guide Wheel 2159 mm (85 in.) Center-line to center-line of drive tires

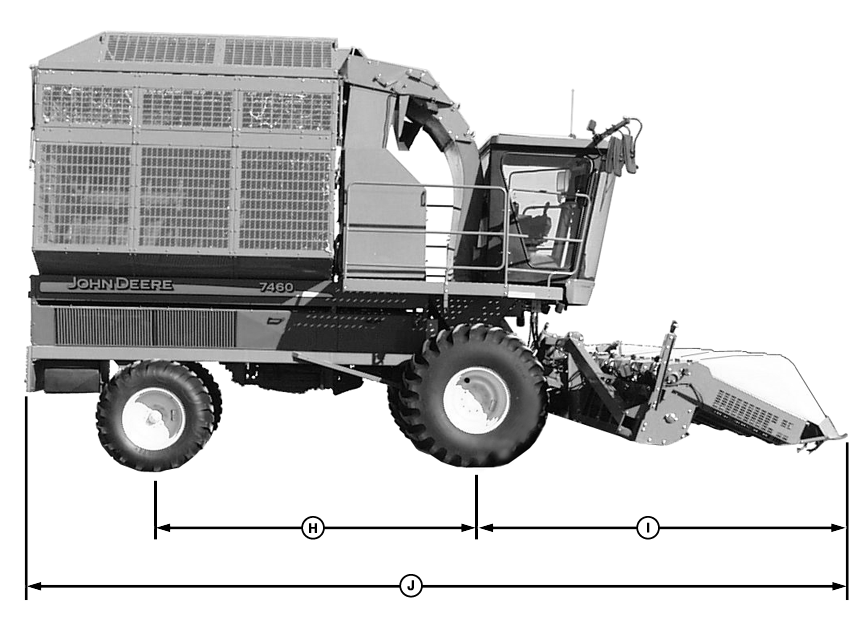

H-3435 mm (135-1/4 in.)
|
I-3417 mm (134-1/2 in.) (Units Lowered)
J-7888 mm (310-1/2 in.) (Units Lowered)
|
