Accessing Cleaner Doffer and Fan

causym CAUTION: Entanglement in cleaner doffer can cause serious injury or death to you or others. Disengage cleaner drive, shut off engine, and remove key BEFORE unclogging machine.

IMPORTANT: After servicing, always replace shields and hook straps to protect cleaner from debris.

1. Park machine on a flat, level surface. Raise basket, disengage cleaner auger drive, shut off engine and remove key.

TS676

NXN,7455,P13A1 -19-28MAR97-1/3

causym CAUTION: Basket is heavy and can fall causing serious injury or death to you or others. When basket is in raised position, turn handle to lock position BEFORE working under basket. When lowering basket, stand clear and turn handle to unlock position. Basket will not lower unless valve is unlocked.

2. Turn basket lockup handle (A) to "LOCK" position.

TS261
N61227

NXN,7455,P13A1 -19-28MAR97-2/3

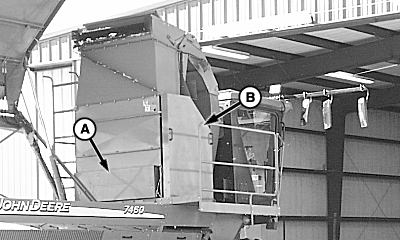

3. Unhook two straps (one each side). Remove door (B) to access doffer.

4. Loosen nuts and remove rear door (A) to access fan.


A-Fan Door
B-Doffer Door

N62562

NXN,7455,P13A1 -19-28MAR97-3/3
