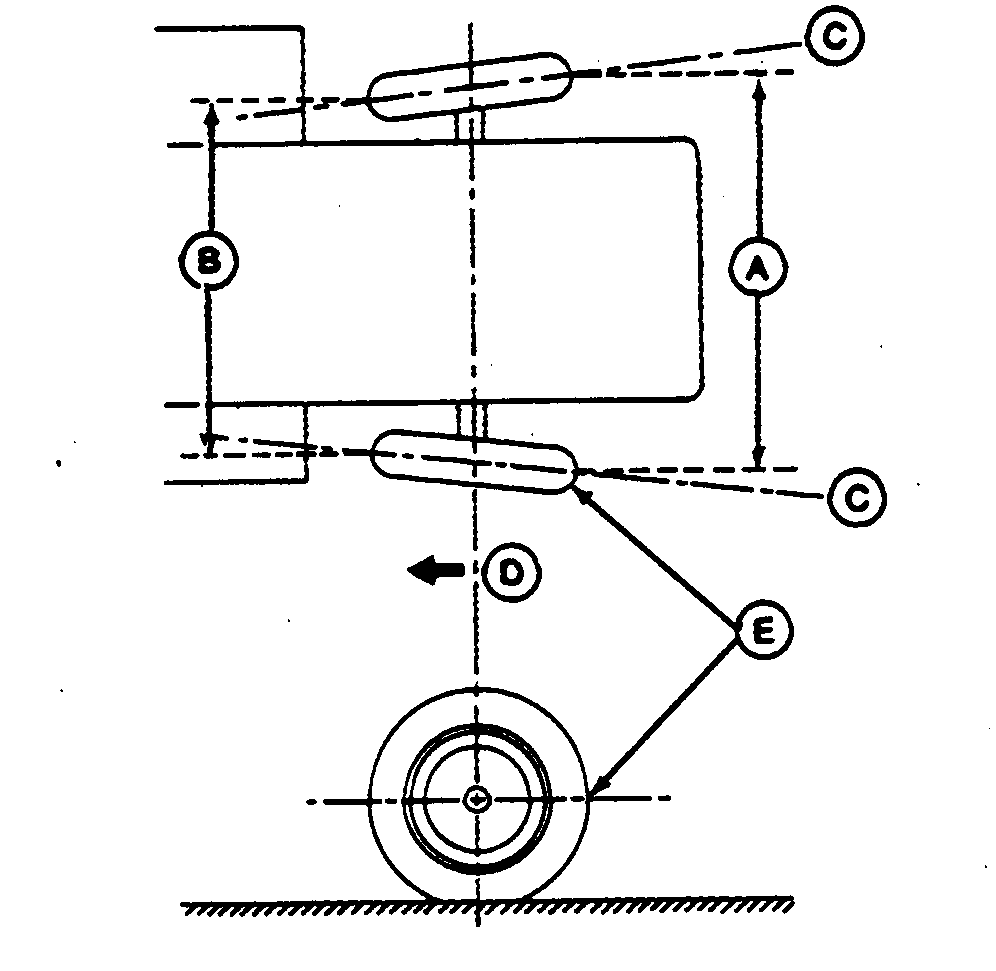

Checking Guide Wheels Toe-In

1. Mark center (C) of each tire tread at rear, in line with axle centerline (E).

2. Measure and record spacing (A).

3. Move machine forward (D) until marks on tires are in front, in line with axle centerline.

4. Measure and record spacing (B). Spacing (B) should be 6-13 mm (1/4-1/2 in.) less than (A). If not, see ADJUSTING TOE-IN.


A-Spacing
B-Spacing
C-Center of Each Rear Tire Tread
D-Forward Direction
E-Axle Centerline

N38850

NXN,7455,P84 -19-28MAR97-1/1
