Removing Cleaner Belts

causym CAUTION: Entanglement in cleaner belts can cause serious injury or death to you or others. Disengage cleaner drive and shut off engine BEFORE accessing cleaner.

1. Park machine on flat, level surface. Disengage cleaner auger drive and shut off engine.

TS285

NX,7455,P26L2 -19-11APR97-1/2

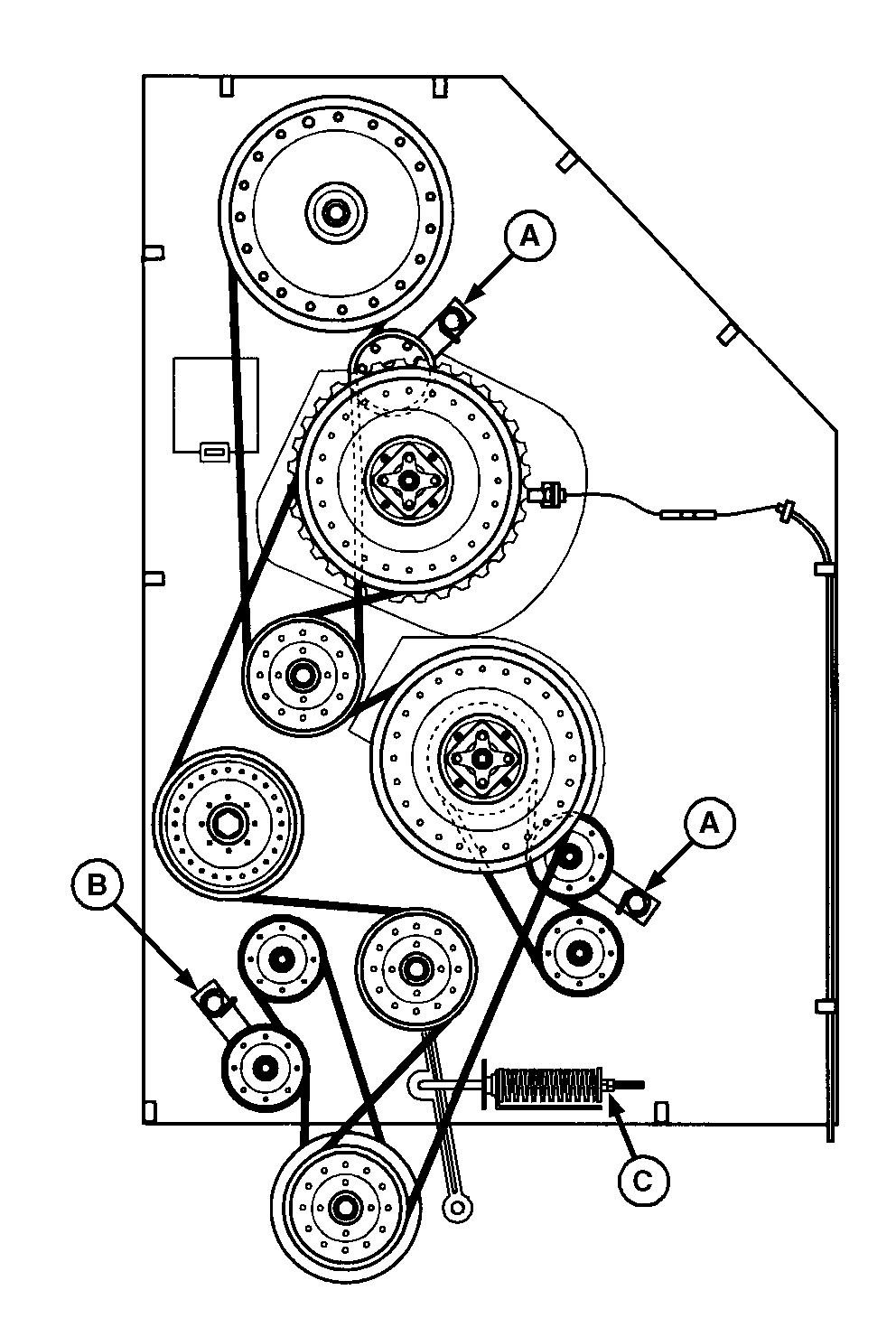

2. Loosen idler bolts (A) from inside cabinet. Loosen idler bolt (B) from rear of cleaner.

3. Loosen spring idler nuts (C).

4. Release spring idlers (A) and (B). Remove belt from sheave.

5. Replace belt (see CLEANER BELT CHART in this group for correct sizes and locations). Tighten nuts and return spring idler to operating position.

6. Tighten belts. (See ADJUSTING BELT TENSION in this section.)


A-Spring Idler Bolts
B-Spring Idler Bolt
C-Nuts

N62714

NX,7455,P26L2 -19-11APR97-2/2
