Replacing Air Cleaner Element

1. Disengage latch (A) and remove cover (B).

NOTE: Rotating elements while pulling aids in removal.

2. Remove primary element.

3. Clean dirt from inside canister and cover with a cloth.

IMPORTANT: Remove secondary element ONLY if it is to be replaced. DO NOT attempt to clean secondary element.

4. Remove secondary element. Replace secondary element with new element immediately to prevent dust from entering intake system.

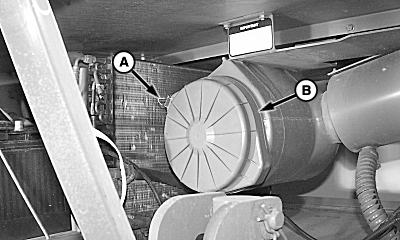

N62576


A-Latch
B-Cover

NX,7455,P33 -19-15NOV96-1/1
