Identification Number

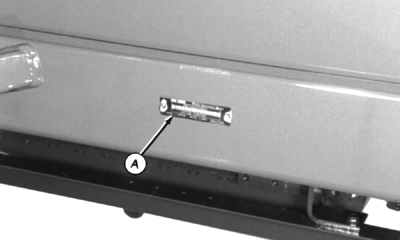

The cotton stripper product identification number (P.I.N.) is located on left-hand side of main frame. Record it in the space provided.

Identification Number _________________________

NX,9976,S7 -19-17JUN97-1/10

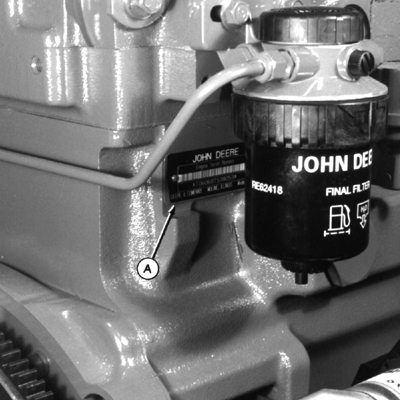

Engine serial number (A) is on left-hand side of engine block.

Engine Serial Number _________________________

NX,9976,S7 -19-17JUN97-2/10

Cleaner gear case serial number (A) is located on top of gear case.

Cleaner Gear Case Serial Number __________________________

NX,9976,S7 -19-17JUN97-3/10

Hydrostatic motor serial number (A) is located on front side of motor.

Motor Serial Number ___________________________

NX,9976,S7 -19-17JUN97-4/10

Hydrostatic pump serial numbers (A) is located on top of pump.

Hydrostatic Pump Serial Number ___________________________

NX,9976,S7 -19-17JUN97-5/10

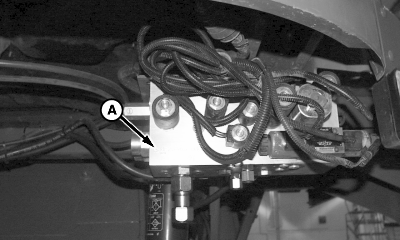

Electro-hydraulic valve serial number (A) is located on front of the valve body.

Valve Serial Number____________________________

NX,9976,S7 -19-17JUN97-6/10

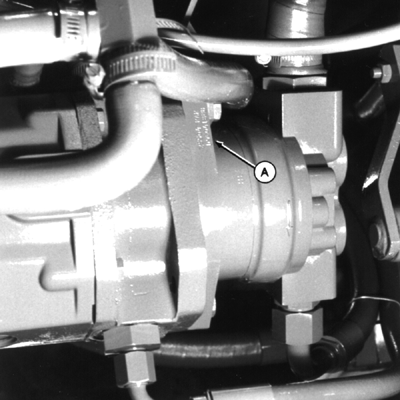

Hydraulic pump date code (A) is located on mounting flange, where it mounts on hydrostatic pump.

Hydrostatic Pump Date Code____________________________

NX,9976,S7 -19-17JUN97-7/10

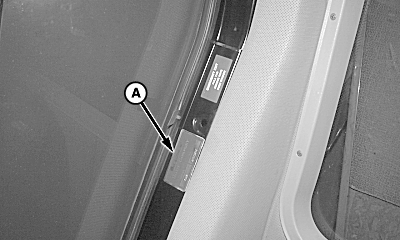

Cab serial number (A) is on inside right-hand corner of cab.

Cab Serial Number____________________________

NX,9976,S7 -19-17JUN97-8/10

The transmission serial number (A) is located on the left-hand side of the transmission case.

Transmission Serial Number____________________________

NX,9976,S7 -19-17JUN97-9/10

Controller serial numbers are located on the back of the housing. Record below or in the spaces provided.

Shaft Speed Monitor Controller Serial Number ___________________________

Actuator Relay Controller Serial Number ___________________________

ROW-TRAK ™ Controller (Optional) Serial Number ___________________________

Header Height Control Controller Serial Number ___________________________

ROW-TRAK is a trademark of Deere & Company

NX,9976,S7 -19-17JUN97-10/10
