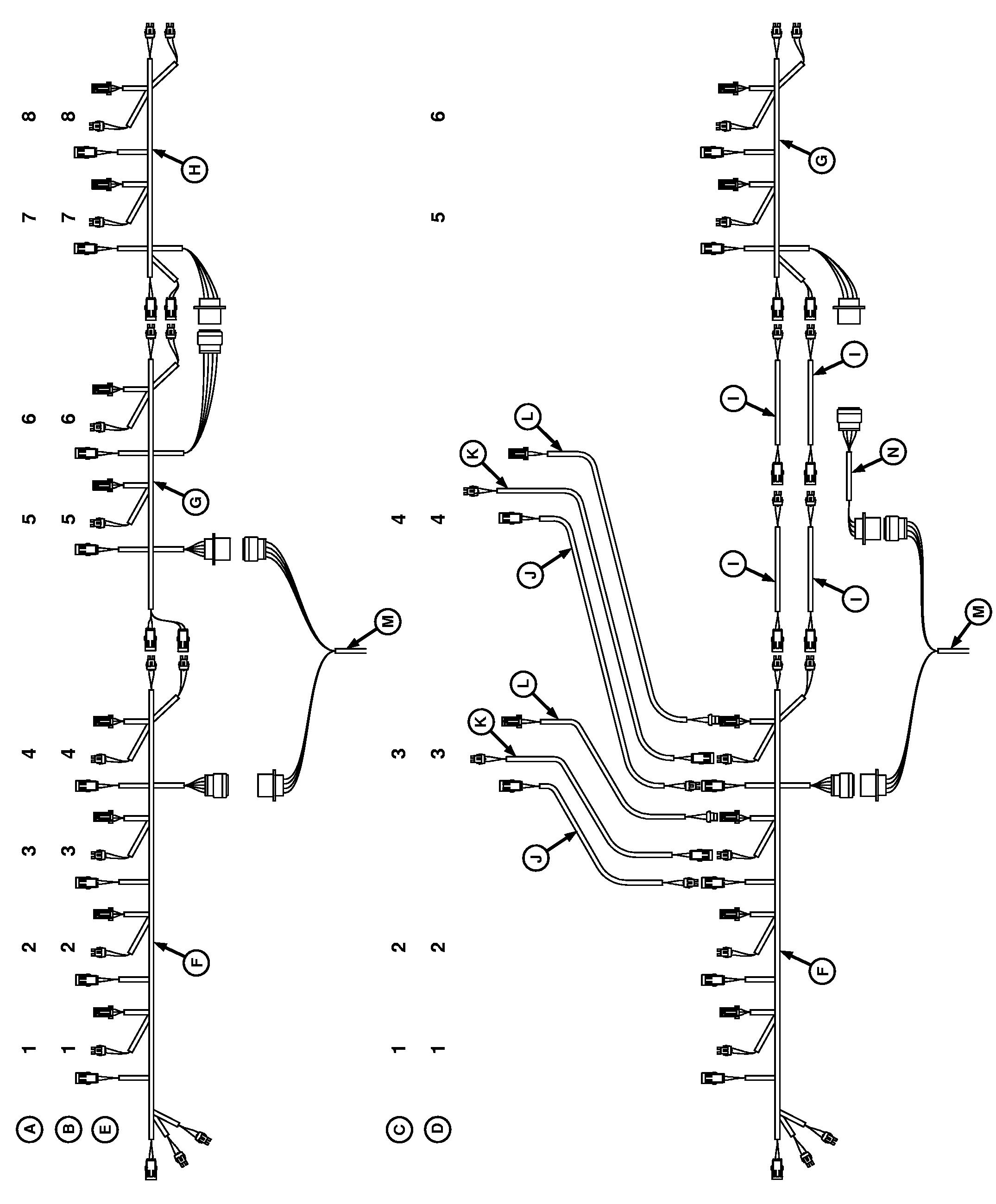

Skip Row Wiring Diagram

N66078

OUO1078,00003B7 -19-03MAY04-1/2


A-Row Unit Position
B-Normal Unit Number
C-4-Row, 2 and 1 Skip Position
D-6-Row, 2 and 1 Skip Position


E-Harness, 8-Row Configuration
F-Harness, AN221013
G-Harness, AN221014


H-Harness, AN221015
I-Harness, AN221506
J-Harness, AN221506
K-Harness, AN221506


L-Harness, AN221507
M-Chassis Harness Connections
N-Harness, AN221509

NOTE: If narrow row spacings are used, retain excess harness using tie bands.

Use this diagram as a guide when changing row spacings and configurations. The wiring harnesses

have "flags" on them that identify which row unit the wiring goes to, and that configuration MUST be used. For example, harness number AN221013 must be used for row units 1-4 no matter the row configuration.

OUO1078,00003B7 -19-03MAY04-2/2
