Stopping Engine

1. Stop machine, place transmission lever (A) and hydro lever (B) in neutral. Engage parking brake.

IMPORTANT: Cooling of turbocharger and certain engine parts is provided by engine oil. Stopping a hot engine abruptly can cause damage to these parts by overheating.

2. Move fan/units switch (C) to off position and throttle switch (D) to idle position. Allow engine to operate at idle throttle for two minutes.

3. Lower units.

4. Turn off all accessory switches.

5. Turn ignition switch off and remove key.

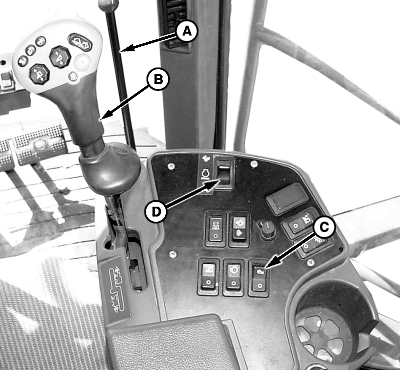

N62209


A-Transmission Lever
B-Hydro Lever
C-Fan/Units Switch
D-Throttle Switch

OUO1078,0000635 -19-20FEB03-1/1
