Replacing Saw Brush

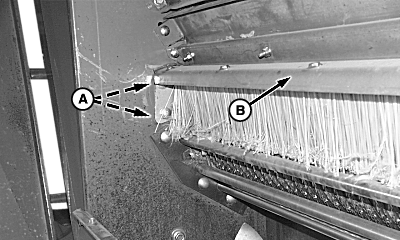

1. Remove four nuts (A) and round head bolts. Repeat on opposite side.

2. Remove secondary reclamation brush holder panel (B).


A-Nuts (4 used)
B-Brush Holder Panel

N62029

Right-Hand Side

OUO1078,0000636 -19-14MAR03-1/2

3. Remove six nuts (A) and brush (B).

4. Install replacement brush and tighten hardware.

5. Loosen round head bolts at each end of brush holder panel.

6. Adjust holder panel so brush contacts saw, tighten round head bolts.

7. Install secondary reclamation brush in reverse order of removal. Adjust if necessary.


A-Nuts (6 used)
B-Brush

N62030

OUO1078,0000636 -19-14MAR03-2/2
