Parking Brake Pedals

IMPORTANT: Machine is equipped with manual engage and disengage parking brake pedals. Be certain to engage parking brake when engine is running and machine is parked and before leaving the machine with the engine turned off.

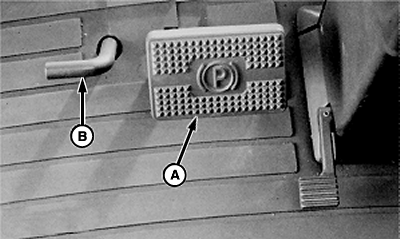

Press pedal (A) to engage parking brake and pedal (B) to release parking brake.

A-Pedal
B-Pedal

OUO6043,000001E -19-26JAN01-1/1
