Removing And Cleaning Fresh Air Filter, Tray And Pre-Cleaner

Recommended Service Interval
Clean Fresh Air Filter And Pre-Cleaner (Normal Conditions) Every 50 Hours
Clean Fresh Air Filter And Pre-Cleaner (Dusty Conditions) Daily



1. Loosen knob (A), remove cover (B) and dump attached dirt tray.


A-Knob
B-Cover

N62566

OUO6043,0001397 -19-02FEB01-1/2

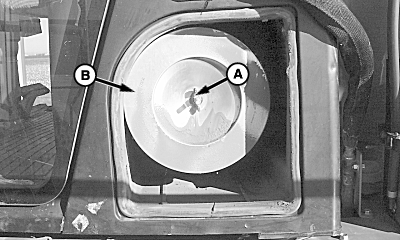

2. Remove wing nut (A) and pull out fresh air filter (B).

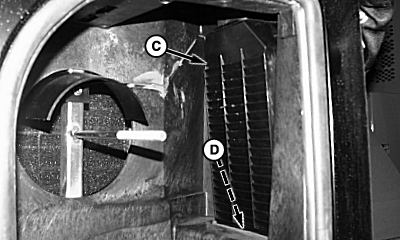

3. Push down on pre-cleaner (C) and pull it out from the top.

4. Check hole (D) in floor under pre-cleaner for debris. Clean as necessary.

5. Wash and dry pre-cleaner. Reinstall.

6. Clean or replace fresh air filter as necessary.

IMPORTANT: Do not overtighten knob.

7. Install cover and tighten knob.


A-Wing Nut
B-Fresh Air Filter
C-Pre-Cleaner
D-Hole

N62567
N57097

OUO6043,0001397 -19-02FEB01-2/2
