Clean Cab Roof Air Inlet Panel

NOTE: Clean this panel only when it looks plugged.

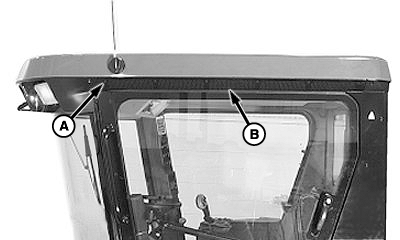

1. Remove six screws (A) and remove panel (B). Air is brought in through the left-hand side panel only.

2. Clean with compressed air or water.


A-Screws
B-Panel

N57542

OUO6043,000139B -19-02FEB01-1/1
