Operators Seat Adjustments

Height, Weight, Fore/Aft and Seat Bottom Tilt Adjustments

Height Adjustment- Seat suspension has three height positions. Adjust as follows:

1. To set in lowest position, grasp front edge of seat cushion base and pull seat upward as far as possible, then release. Seat should now be at lowest height setting.

2. To change from lowest to middle height position, lift seat up slowly until a "click" sound is heard; then release seat.

3. To change from middle to highest position, slowly lift seat up until "click" sound is heard; then release seat.

NOTE: Operator presence system may not recognize seat switch if Weight-To-Ride adjustment is set too high for the operator. Weight-To-Ride adjustment must be dialed in with operator OUT of seat.

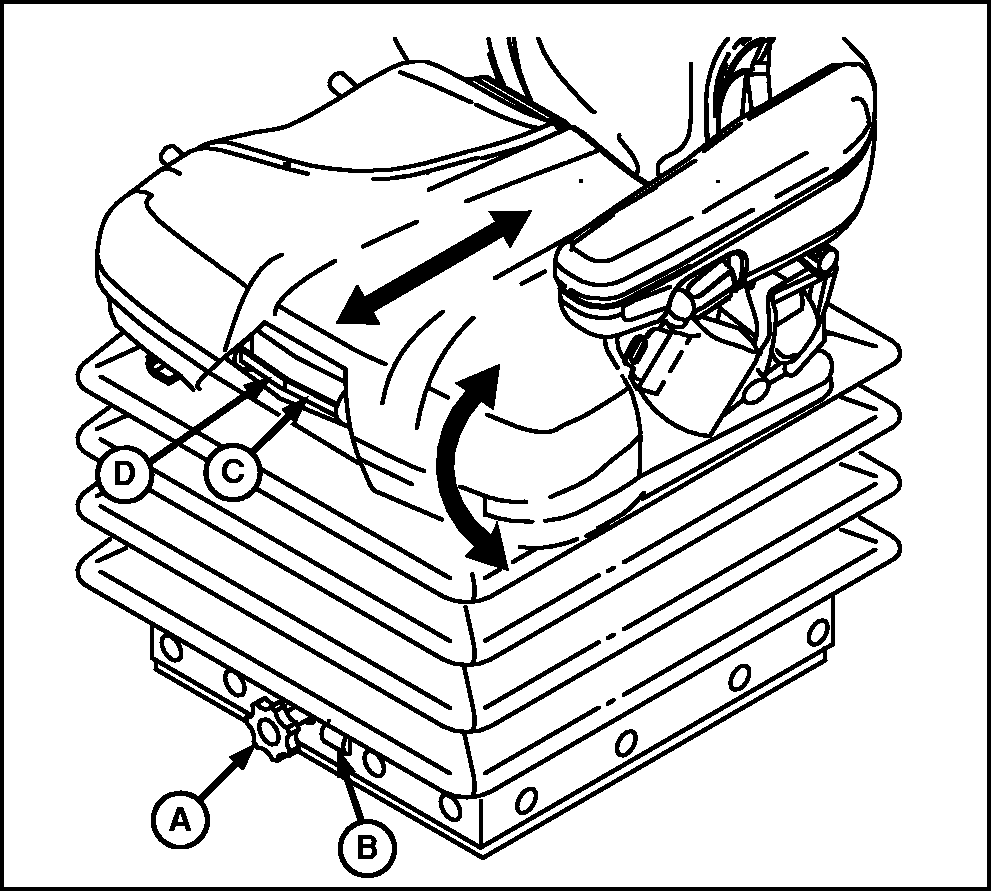

Weight-To-Ride Adjustment- Turn handwheel (A) until the operator's weight (in pounds) is shown in weight window (B).

Fore and Aft Adjustment- Pull slide lever (C) upward to slide seat forward or backwards as desired. Release lever.

Seat Bottom Tilt- Pull lever (D) upward and adjust seat bottom tilt to desired position. Release lever.

N58997


A-Handwheel
B-Weight Window
C-Slide Lever
D-Seat Bottom Tilt Lever

OUO6043,0001427 -19-04JUN01-1/2

Armrest, Seat Back Tilt And Lumbar Adjustments

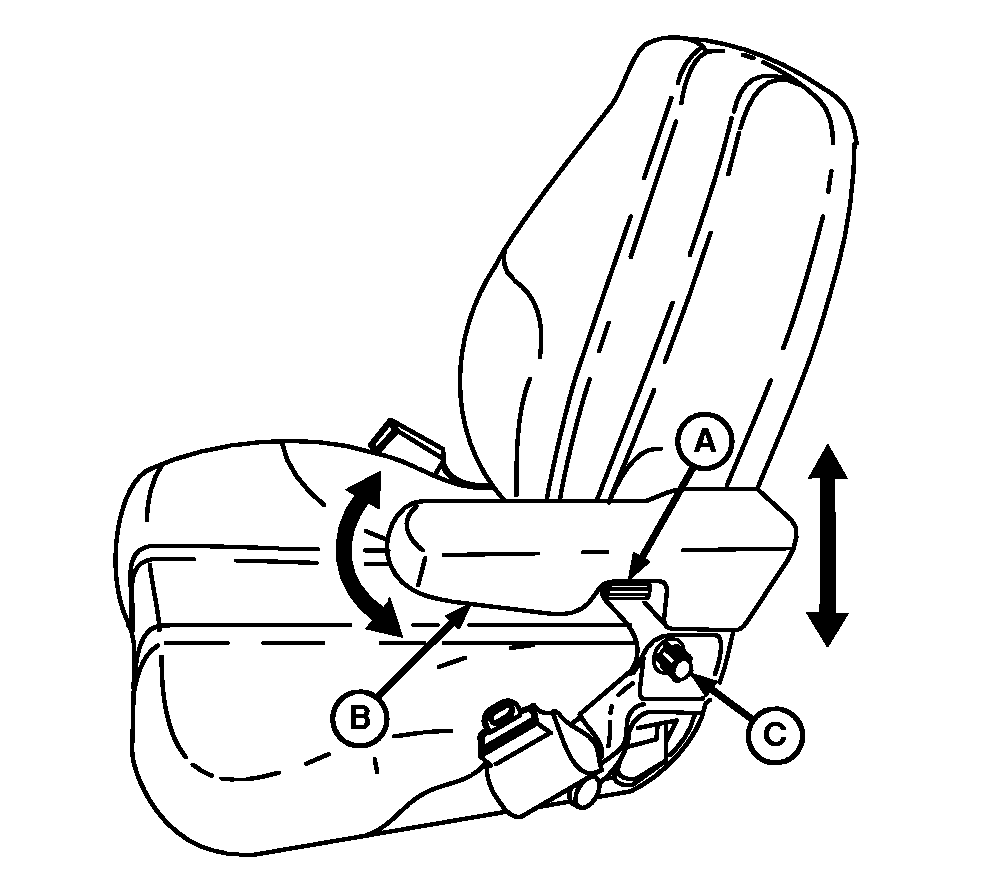

Adjust Armrest Angle- Rotate knob (A) clockwise to lower front of armrest (B) and counterclockwise to raise front of armrest as desired. Armrest pivots for easier entry and exit from cab.

Adjust Armrest Height- Loosen knob (C) and raise or lower armrest to desired height. Tighten knob.

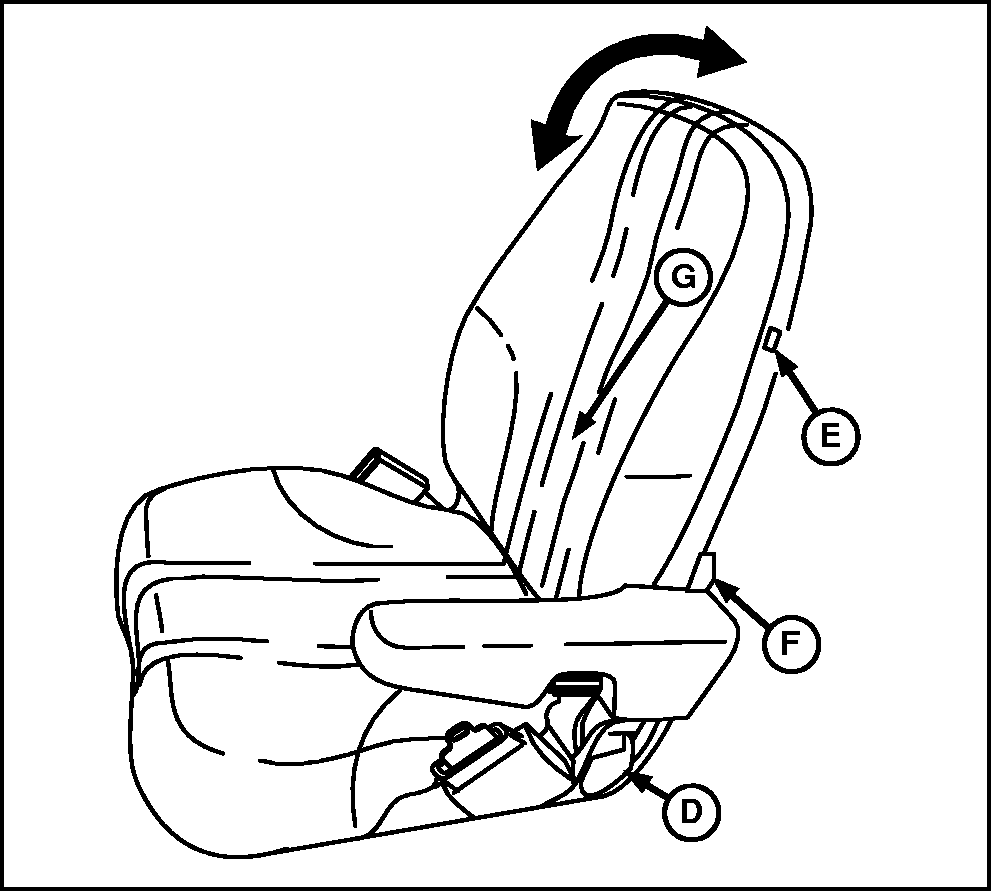

Adjust Seat Back Tilt- Lift lever (D) and position seat back (E) to desired tilt. Release lever.

Rotate knob (F) clockwise to increase lumbar support (G) or counterclockwise to decrease lumbar support.


A-Knob
B-Armrest
C-Knob
D-Lever
E-Seat Back
F-Knob
G-Lumbar Support

N58995
N58996
